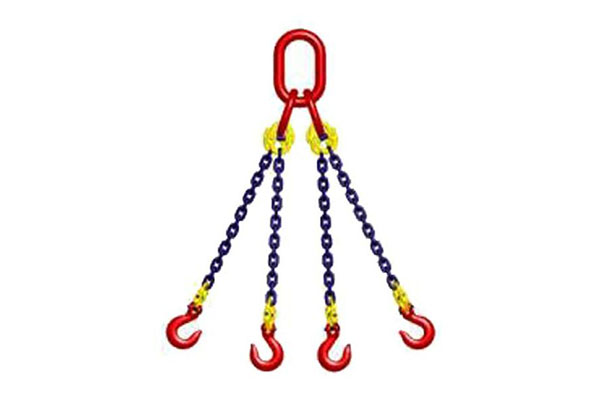

1、limbs rigging chain Overview:
Leg rigging chain links are connected to each metal rigging, has two kinds of main welding and assembly in accordance with the form, it features resistant, high temperature, low ductility, the force does not extend Wait. Long life, easy to bend, suitable for large-scale, frequent use of the occasion.
2, chain rigging limbs parameters:
Model | diameter(d)mm | WLL(T) | Main ring | weight(Kg/M) | |
a≤45 | 45<a≤60 | A*B*D | |||
DL8(2)-6 | 6 | 2.35 | 1.68 | 75*135*18 | 0.79 |
DL8(2)-8 | 8 | 4.2 | 3 | 90*160*22 | 1.38 |
DL8(2)-10 | 10 | 6.64 | 4.72 | 100*190*28 | 2.2 |
DL8(2)-13 | 13 | 11.13 | 7.95 | 110*200*32 | 3.8 |
DL8(2)-16 | 16 | 16.38 | 11.7 | 140*260*35 | 5.63 |
DL8(2)-20 | 20 | 23.52 | 16.8 | 190*350*50 | 8.6 |
DL8(2)-22 | 22 | 31.5 | 22.5 | 190*350*50 | 10.2 |
DL8(2)-26 | 26 | 44.5 | 31.8 | 200*400*60 | 14 |
DL8(2)-32 | 32 | 66.15 | 47.25 | 250*460*7 | 22.29 |
