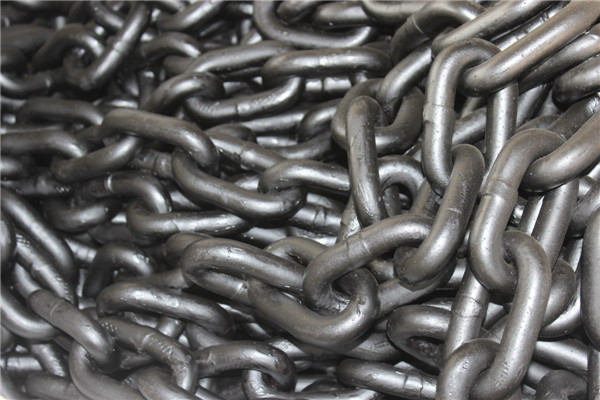

1,Mine chain ring chain Outline：
Mine chain/Mine high-intensity ring chainCompact size, light weight, have some ability to compensate for the installation less precision, reliable, long life.Mine chain/Mine high-intensity ring chainOperation by means of moving scraper chain to transport bulk materials continuous transport equipment, scraper conveyor in large, explosive, can significantly improve the working environment of workers and the prevention of environmental pollution during high-temperature materials.
2, Mine chain ring chain parameters：
| Straight side diameter of finished chain(d) | Pitch(P) | Width | Yoneju(kg/m) | Test load(KN) | Maximum elongation under test load | Minimum breaking load | Minimum elongation under test load | quality level | |||
| Nominal size | limit deviation | Nominal size | limit deviation | Inner width | Outer width | ||||||
| 10 | ±0.4 | 40 | ±0.5 | 12 | 34 | 1.9 | 85 | 1.4 | 110 | 12 | B |
| 100 | 1.6 | 130 | 12 | C | |||||||
| 130 | 1.9 | 160 | 12 | D | |||||||
| 14 | ±0.4 | 50 | ±0.5 | 17 | 48 | 4 | 150 | 1.4 | 190 | 12 | B |
| 200 | 1.6 | 250 | 12 | C | |||||||
| 250 | 1.9 | 310 | 12 | D | |||||||
| 18 | ±0.5 | 64 | ±0.6 | 21 | 60 | 6.6 | 260 | 1.4 | 320 | 12 | B |
| 330 | 1.6 | 410 | 12 | C | |||||||
| 410 | 1.9 | 510 | 12 | D | |||||||
| 22 | ±0.7 | 86 | ±0.9 | 26 | 74 | 9.5 | 380 | 1.4 | 480 | 12 | B |
| 490 | 1.6 | 610 | 12 | C | |||||||
| 610 | 1.9 | 760 | 12 | D | |||||||
| 24 | ±0.7 | 86 | ±0.9 | 28 | 79 | 11.6 | 460 | 1.4 | 570 | 12 | B |
| 580 | 1.6 | 720 | 12 | C | |||||||
| 720 | 1.9 | 900 | 12 | D | |||||||
| 26 | ±0.8 | 92 | ±0.9 | 30 | 86 | 13.7 | 540 | 1.4 | 670 | 12 | B |
| 680 | 1.6 | 850 | 12 | C | |||||||
| 850 | 1.9 | 1060 | 12 | D | |||||||
| 30 | ±0.8 | 108 | ±1.0 | 34 | 98 | 18 | 710 | 1.4 | 890 | 12 | B |
| 900 | 1.6 | 1130 | 12 | C | |||||||
| 1130 | 1.9 | 1410 | 12 | D | |||||||
| 34 | ±0.9 | 126 | ±1.2 | 38 | 109 | 22.7 | 900 | 1.4 | 1140 | 12 | B |
| 1160 | 1.6 | 1450 | 12 | C | |||||||
| 1450 | 1.9 | 1810 | 12 | D | |||||||
| 38 | ±1.0 | 137 | ±1.4 | 42 | 121 | 29 | 1130 | 1.4 | 1420 | 12 | B |
| 1450 | 1.6 | 1810 | 12 | C | |||||||
| 1810 | 1.9 | 2270 | 12 | D | |||||||
| 42 | ±1.3 | 152 | ±1.5 | 46 | 133 | 35.3 | 1390 | 1.4 | 1740 | 12 | B |
| 1770 | 1.6 | 2220 | 12 | C | |||||||
| 2220 | 1.9 | 2770 | 12 | D | |||||||
