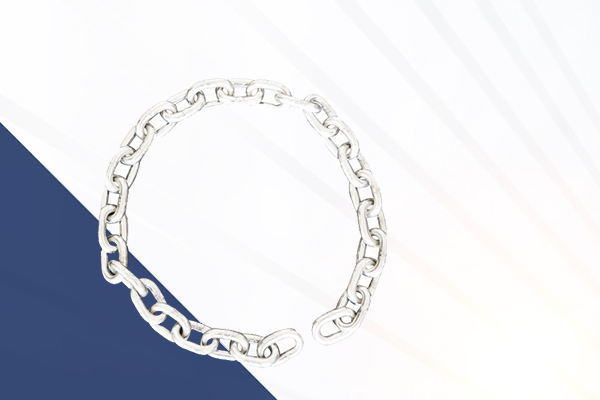

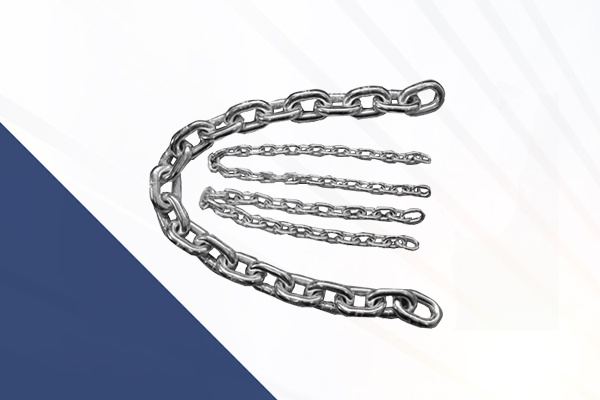

1， Stainless steel lifting chain overview：
The stainless steel chain adopts advanced heat treatment and surface hardening technology, precision processing and optional assembly, stable quality, and dimensional parameters comply with national standards. The entire stainless steel chain is pre-stretched, so it has high strength, stable operation and durability.
2, Features of stainless steel chain： Surface treatment: bright Strength grade: 50, 60 (below 10mm)
Safety factor: 4 times safety factor Material: 304 (long), 316 (long), 321 (long) Selection standard: European standard EN818-2 |
3, the advantages of stainless steel chain：
JschainNew technology: automatic resistance welding technology to ensure the high strength of the chain strength ≥ G50
Using automatic chain weaving machine
The chain accuracy meets and reaches the hoist chain standard (Such as GB/T20947-2007)
A special extrusion process is used to ensure abrasion resistance
Fully automatic chain production | Automated welding |
4,Product specifications：
Stainless-steel-lifting-chain11-2x38 |
Stainless-steel-lifting-chain9x27 |
Stainless-steel-lifting-chain10x30 |
Stainless-steel-lifting-chain6x32 |
Stainless-steel-lifting-chain8x35 |
Stainless-steel-lifting-chain10x38 |
5, the stainless steel chain parameters：
| d | inner lenght（p） | width | wll（T） | breaking load（T） | weight（kg/m） | |||
| model | tolerance | diameter | min（a） | max（b） | ||||
| 6 | ±0.2 | 18 | 0，+0.4 | 7.8 | 22.2 | 0.8 | 32 | 0.78 |
| 7 | ±0.3 | 21 | 0，+0.4 | 9.1 | 25.9 | 1.2 | 48 | 1.1 |
| 8 | ±0.3 | 24 | 0，+0.5 | 10.4 | 29.6 | 1.6 | 64 | 1.4 |
| 9 | ±0.4 | 27 | 0，+0.5 | 11.7 | 33.3 | 1.8 | 72 | 1.8 |
| 10 | ±0.4 | 30 | 0，+0.6 | 13 | 37 | 2 | 80 | 2.2 |
| 12 | ±0.5 | 36 | 0，+0.6 | 15.6 | 44.4 | 2.4 | 96 | 3.3 |
| 13 | ±0.5 | 39 | 0，+0.8 | 16.9 | 48.1 | 3.3 | 132 | 3.8 |
| 14 | ±0.6 | 42 | 0，+0.8 | 18.2 | 51.8 | 3.8 | 152 | 4.4 |
| 16 | ±0.6 | 48 | 0，+0.9 | 20.8 | 59.2 | 5 | 200 | 5.7 |
| 18 | ±0.9 | 54 | 0，+1.0 | 23.4 | 66.6 | 6.3 | 252 | 7.1 |
| 20 | ±1 | 60 | 0，+1.2 | 26 | 74 | 7.8 | 312 | 9 |
| 22 | ±1.1 | 66 | 0，+1.3 | 28.6 | 81.4 | 8.4 | 336 | 10.5 |
| 24 | ±1.2 | 72 | 0，+1.3 | 31.2 | 88.8 | 9.6 | 384 | 12.5 |
| 26 | ±1.3 | 78 | 0，+1.3 | 33.8 | 96.2 | 11.8 | 472 | 15.5 |
6,Our advantages：
Based on the research and development and production of high-strength, high-precision mid-to-high-end chain.
The company's technical team is led by senior engineers who have been engaged in high-strength chain research and development, technology, and production management for nearly 30 years.
Through the European standard rated working load (WLL) manufacturing verification force tensile test to ensure that our links are perfect.
It has more than 50 sets of fully automatic and semi-automatic production equipment such as chain braiding, welding chain, heat treatment, surface treatment, tension leveling machines, and more than 100 sets of testing equipment.
 |  |  |  |
 |  |  |  |
 |  |
